100A 220V Automatic Transfer Switch, 2P Dual Power Select Interruptor Electrical Changeover Switch with LED Display, Mini ATS Din Rail Mount, 50/60Hz CE Certified for Home Backup Power
5.0 (68 items)
Limited Time SaleUS$27.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215636318 | Release Date | 2026/04/12 | List Price | US$18.40 | Model Number | 215636318 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

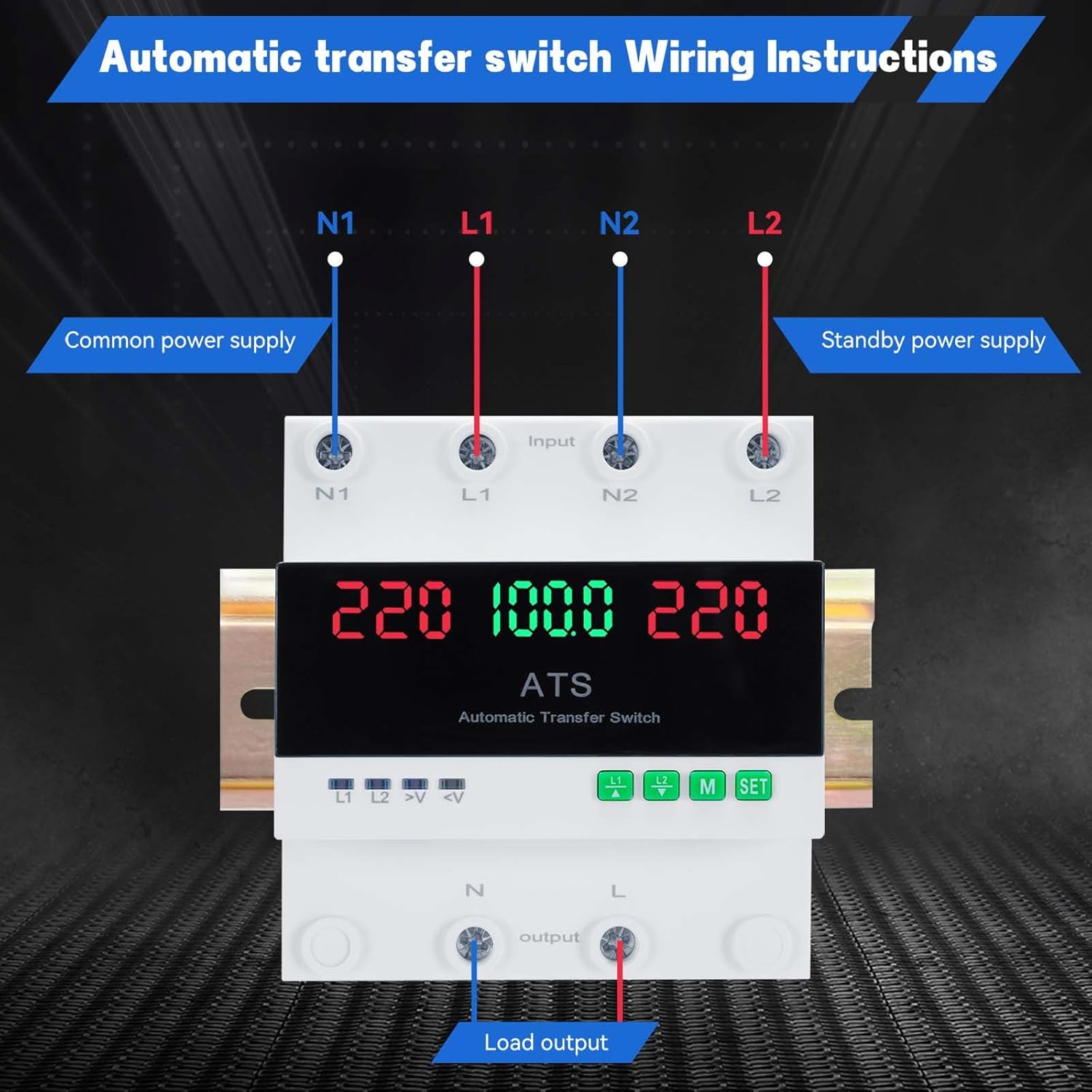

- Automatic Transfer Switch Mode: This 100A 220V dual-source Automatic Transfer Switch (ATS) utilizes advanced microcontroller technology to deliver seamless power management. generator transfer switch automatically switches from the primary power source (L1) to the backup source (L2) during outages or voltage irregularities, and returns to primary power once it is restored and stable
- Crystal-Clear LED Display for Live Monitoring: Equipped with a crystal-clear LED display and intuitive status indicators, this auto transfer switch ATS delivers real-time voltage monitoring and live operational status updates. power transfer switch keeps you continuously informed with instant, clear, and accurate feedback on power conditions—giving you added peace of mind
- 220V OVER AND UNDER-VOLTAGE PROTECTION: 2Pole dual power automatic transfer switch 220v designed for track installation, dedicated to PZ30 distribution box. dual power automatic transfer switches is suitable for 50/60Hz dual power grid. auto dual power transfer switch working current is between 6A-100A. 220V/50Hz Undervoltage value: 175V, Recovery value: 185V; Overvoltage value: 265V, Recovery value: 255V (± 5V)
- DIN RAIL MOUNTING: Din rail automatic transfer switch Compact design Applies to 35mm rail, Spring buckle Tolerant to 50Hz/60Hz mechanical vibration, ATS change over switch Through the DIN rail standardized design, Ats achieves industrial-grade reliability with ready-to-install and worry-free maintenance
- MULTI-SCENARIO APPLICATION：This dual-power automatic transfer switch (ATS) ensures a stable power supply and is suitable for use in situations where power outages are unacceptable. ac 220v automatic transfer switch is suitable for home power protection, small shops/convenience stores, medical equipment power supply, data centers and emergency systems, uninterrupted production line operation, photovoltaic microgrids, and indoor Rv, Lv, Cn Public/Backup Power and outdoor generators
- QUALITY ASSURANCE, WORRY-FREE AFTER-SALES SERVICE: 2Pole 100Amp 220V AC Mini ATS Automatic/Manual Transfer Switch Made of high-strength PA6 engineering plastic, with a flame retardant rating of 94V-2 and an impact strength of 8kJ/m², CCC, CE, RoHS certified, If you encounter any problems during installation or use, our professional engineers will answer your questions
| Model | 100A 2P AC 220V ATS LED |
|---|---|
| Wattage | 22000 watts |
| Terminal | Screw |
| Brand Name | Sezbaifles |
| Unit Count | 1.0 Count |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | Sezbaifles |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Plug In |
| Current Rating | 100 Amps |
| Operation Mode | ON-ON |
| Item Dimensions | 4 x 3 x 2 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 220 Volts (AC) |
| Specification Met | CCC, CE, RoHS |
| Included Components | LED Display Transfer Switch |
| Number of Positions | 1 |
| Lower Temperature Rating | 24 Degrees Fahrenheit |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| International Protection Rating | IP67 |
